Anti-Tank Obstacle
Czech Hedgehog — Anti-Tank Steel Barrier
Battle-Proven Static Anti-Tank Obstacle for Military Defense & Perimeter Fortification
Gallery

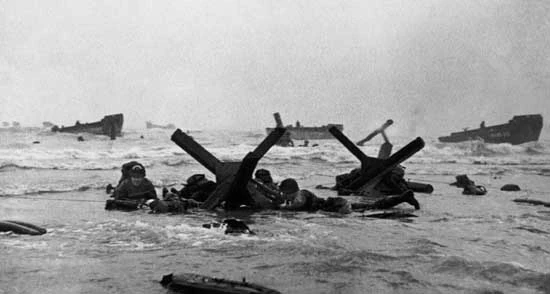

Czech Hedgehog Field Deployment
Czech Hedgehog Defense Line

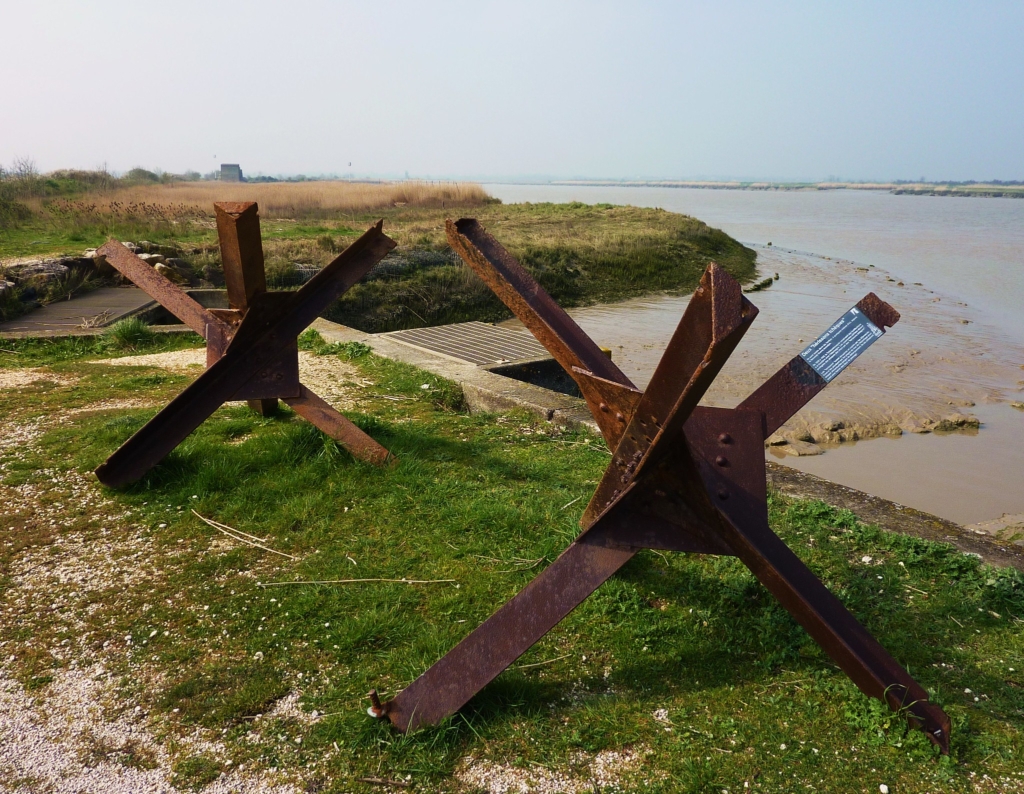

Deployed Czech Hedgehog
Perimeter Defense Setup
Overview
Czech Hedgehog — The Original Anti-Tank Steel Barrier
The Czech Hedgehog is a historically proven static anti-tank obstacle, constructed from three L-profile steel angle beams (L140×140×13 mm) welded at right angles to form a three-dimensional spatial cross. Originally designed by the Czechoslovak military in the 1930s, it has been deployed in every major European conflict from World War II to the current Russo-Ukrainian War, where it has seen a dramatic resurgence in demand.
Each barrier unit weighs 240 kg (standard variant) and is designed to stop light-to-medium armored vehicles by lifting their tracks or wheels off the ground upon contact. The barrier is effective regardless of orientation — even when tipped over by explosions or pushed aside, it remains a functional obstacle. Its simple, robust design allows for rapid mass production in any steel fabrication facility worldwide.
Manufactured from structural steel per EN 10025 S235JR/S355JR standards, each unit features gusset plate reinforcements, square base plates to prevent ground sinking, and barbed wire attachment notches for integrated perimeter defense. The modular design allows for rapid deployment in linear or staggered formations, combined with dragon's teeth, barbed wire, and Hesco barriers for comprehensive defensive lines.
Specifications
Technical Specifications
Technical Specifications
Standard dimensions and technical data
Dimensions & Sizes
| Parameter | Value |
|---|---|
| Material | Hot-rolled equal angle steel L140×140×13 mm, EN 10025 S235JR/S355JR |
| Arm Length (Standard) | 2,100 mm (also available: 1,800 mm) |
| Unit Weight | 240 kg (standard) / 198 kg (early variant) |
| Effective Height | ≤ 1,400 mm |
| Load Capacity | ≥ 60 tonnes-force |
| Number of Arms | 3 (right-angle spatial cross configuration) |
| Connection Method | Full welding + gusset plates + M20 bolted connections |
| Standards Compliance | EN 1090, ISO 9001, ISO 3834 (welding quality) |
FEATURES
Key Features
Battle-Proven Design
Combat-tested since 1937 across WWII, Cold War, and modern conflicts including the Russo-Ukrainian War. Proven effective against light-to-medium armored vehicles.
Omni-Directional Effectiveness
Functions regardless of orientation. Even when tipped over or displaced by explosions, the spatial cross geometry continues to block or impede vehicle movement effectively.
Rapid Mass Production
Simple welded steel construction allows any fabrication shop to produce 60-80 units/day with 20 welders. Low-tech, no specialized equipment required.
Integrated Perimeter Defense
Features barbed wire attachment notches and square base plates. Can be combined with dragon's teeth, Hesco barriers, and concertina wire for layered defense.
Export-Optimized Packaging

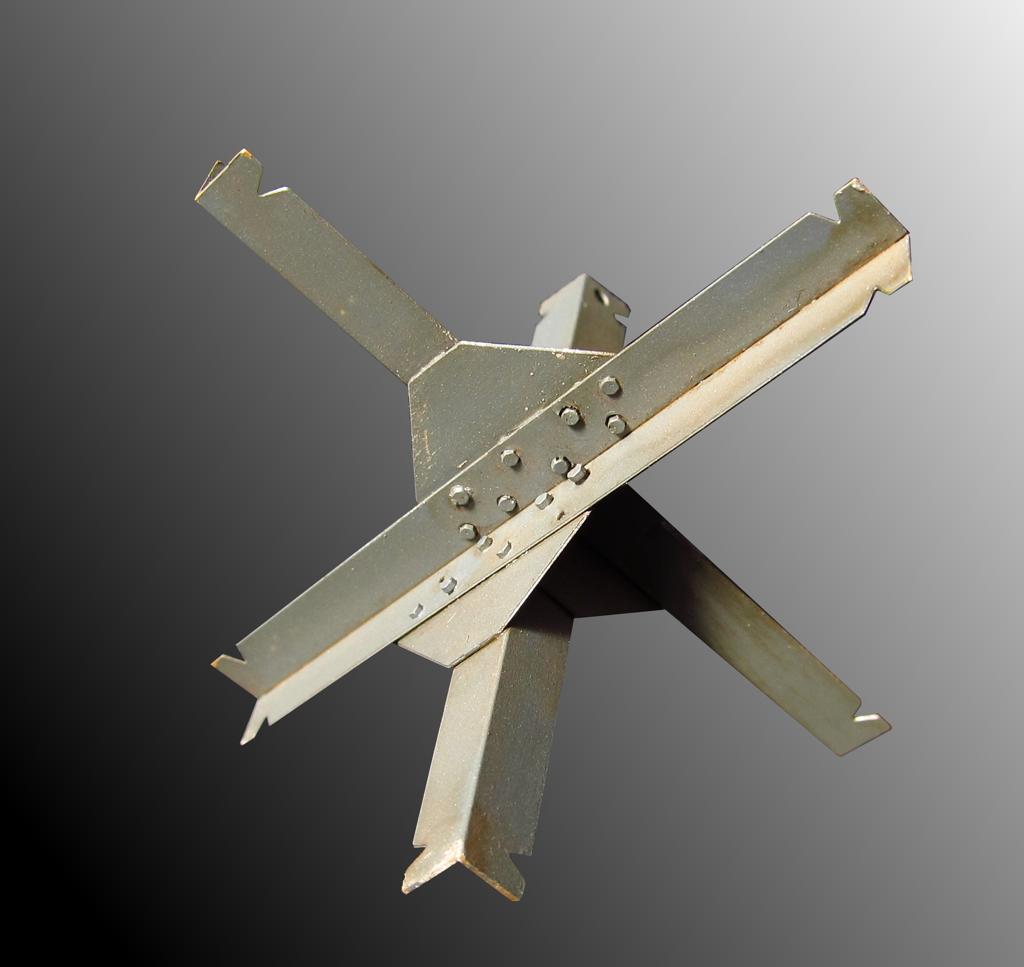

Available in flat-pack bolt-together configuration. 20 ft container can hold 60-80 units disassembled, significantly reducing shipping costs for bulk orders.
Applications
Where It's Installed
Military Anti-Tank Defense
Front-line anti-tank obstacles for military defense lines, fortifications, and armored vehicle denial zones
Border Fortification
NATO eastern flank border defense, national border barriers, and territorial integrity fortification systems
Perimeter Defense
Critical infrastructure perimeter protection for military bases, airports, power plants, and government facilities
Perimeter Security
Perimeter security for critical infrastructure protection
